Transporting Carriage SWT-3T ENG
Transporting Carriage SWT-3T

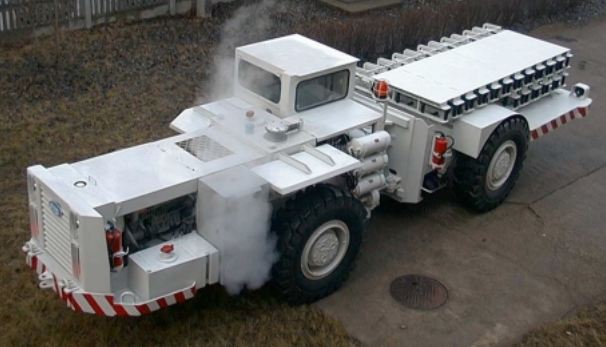

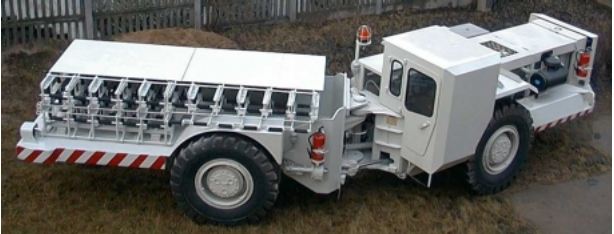

Transporting carriage SWT-3T is destined to work in mines at transportation of cylinder with compressed gas. Heated cab of operator enable work of machine in variable climatical conditions (mine - surface area).

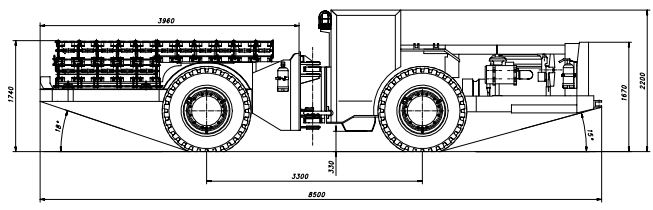

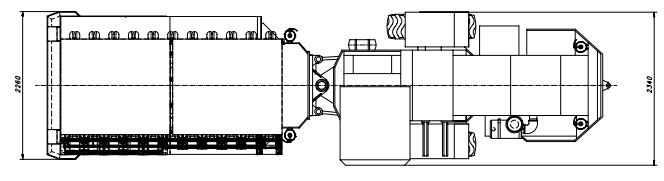

Dimensions and technical data.
| height (with crane) | 2 200 mm |
| length | 8 500 mm |
| width | 2 340 mm |
| axle base | 3 300 mm |
| wheel base | 1 800 mm |
| clearance | 330 mm |
| inner turning radius | 3 500 mm |
| operating weight | ~11 500 kg |
| disposition of operating weight: | |
| for front axle | 4 500 kg |
| for rear axle | 7 000 kg |
| turn angle | 42° |
| angle of hill climbing / downhill: | |
| for tractor | 15° |
| for platform | 13° |
| max speed | 0^38 km/h |
| platform length | 4 000 mm |
| boards opening on 3 sides, about height | 700 mm |
Specification
| Engine | SW 400/L2/7 |
| Induction system | air filter FRG-11-0211 |
| Exhaust system | catalyst SZ0P-07 + washer |
| Transmission | SB-102-KP-E/BHiN0-II (4-gears) |
| Torque converter | ZM-130 N/P |
| Turn system | Danfoss |
| Driving axles "wet": | |
| front | 479-32-000 FON Radomsko |
| rear | 479-31-000 FON Radomsko |
| Service brake | multidisks "wet" |
| Emergency parking brake | HAP |
| Braking system | pneumatic-hydraulic |
| Tyres | 14,0x24 - tube |
| Operator's seat | SA 50/1 (Kunow) |
| Lubrication | point manual |
| Operator's cab | closed, heated |
| Heating cab | water with ventilator |
| Articulated crane | 1500 kgm (lifting moment) |
Optional:
It is possible using components (checked in exploitation conditions) other producers in according to individuals requirements of receiver.
